Description

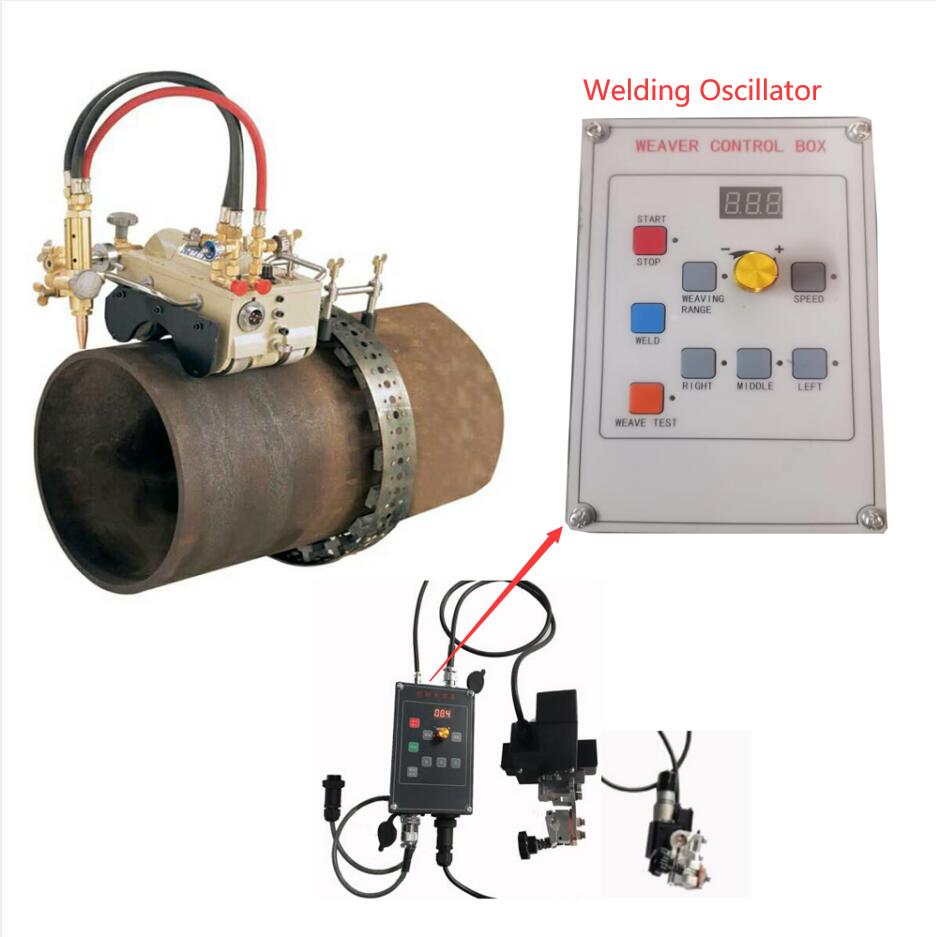

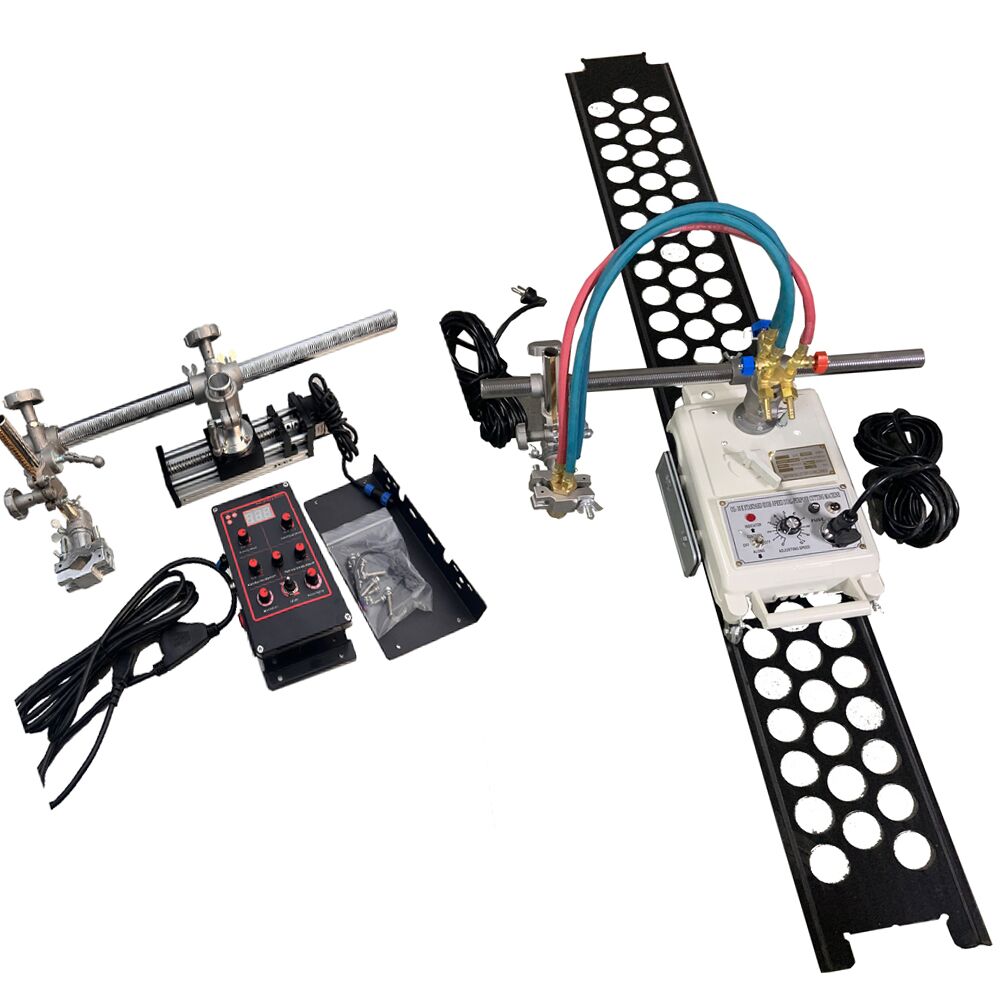

Welding oscillator is a portable oxy-fuel mig welding carriage. It is supplied with a control box with 5m cable length, 1pcs oscillator with 1.7m cable length and one welding torch holder. The maximum speed of this welding oscillator is 3000mm/min and the swing angle is ±15°. The oscillator is suitable for CG1-30 gas cutting machine and CG2-11 automatic pipe gas cutter.

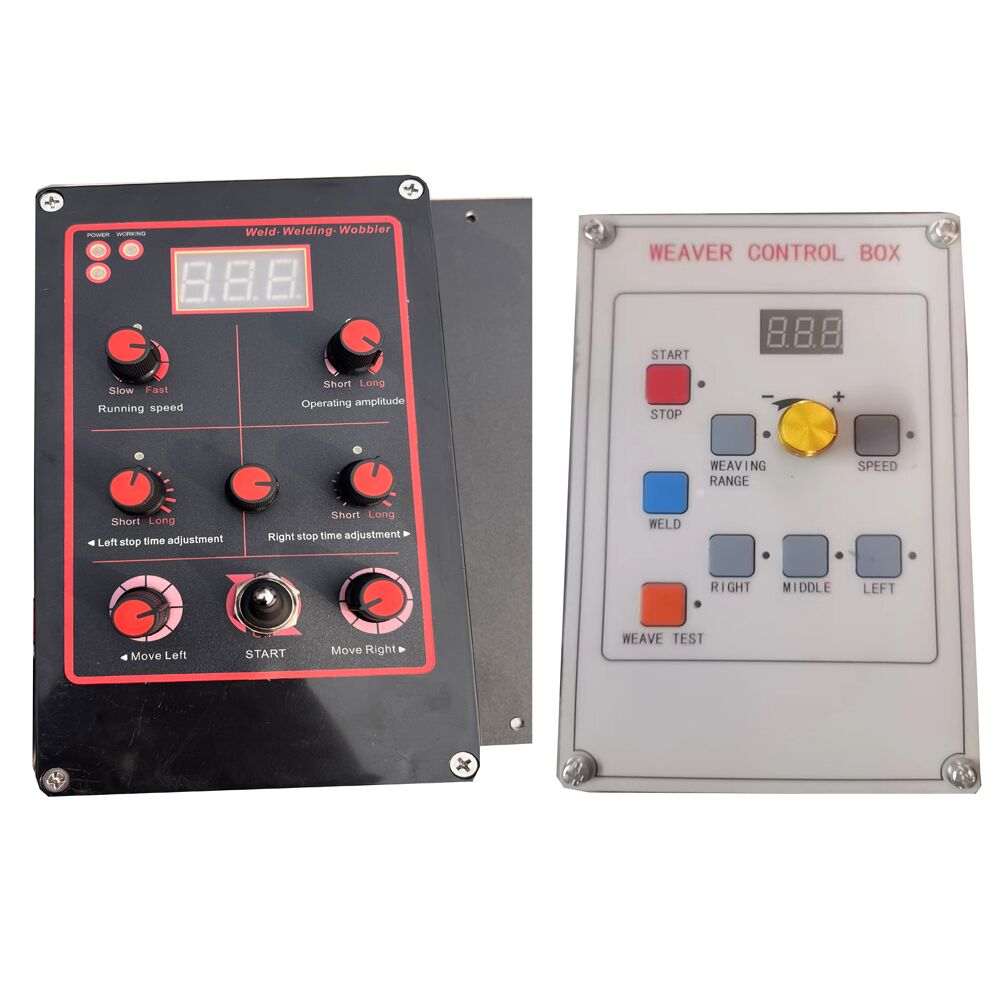

This oscillator welding carriage is well used for straight pendulum and tube welding, convenient in operations and higher efficient. Customers can adjust the “WAVING RANGE”and “SPEED” these two buttons to get the wanted welding angles and speed. The angle setting range is 1.5-15.0° and the welding speed range is 0-120mm/min. Before working, press“WEAVE TEST” button to test the oscillator. After testing ,press “WEAVE TEST” button again to turn off this testing function. Then press“ START STOP”and“ WELD” buttons to do welding job. If press “ WELD” button and hold for more than 3S,the welding torch will do wire feeding welding job, but the machines will not move.（This function is only used for ARC welding testing.）
| Item No.: | CG2-11, CG1-30 |
| Size: | 350x310x180MM |
| Materials: | Aluminum |
| Supply Voltage: | AC220V/50HZ |
| Cutting Thickness: | 6-50MM |
| Cutting Speed: | 50-750MM/MIN |
| Dia of Circle Cutting: | ＞Φ108MM |
| Bevel Angle | I.Y.V 45° |
| Warranty Time: | 1 year |
| Delivery Time: | According to the purchasing quantity |
| MOQ: | 30SETS |
| Payment Terms: | T/T |
| Supply Ability: | 500sets/month |
