Product Details

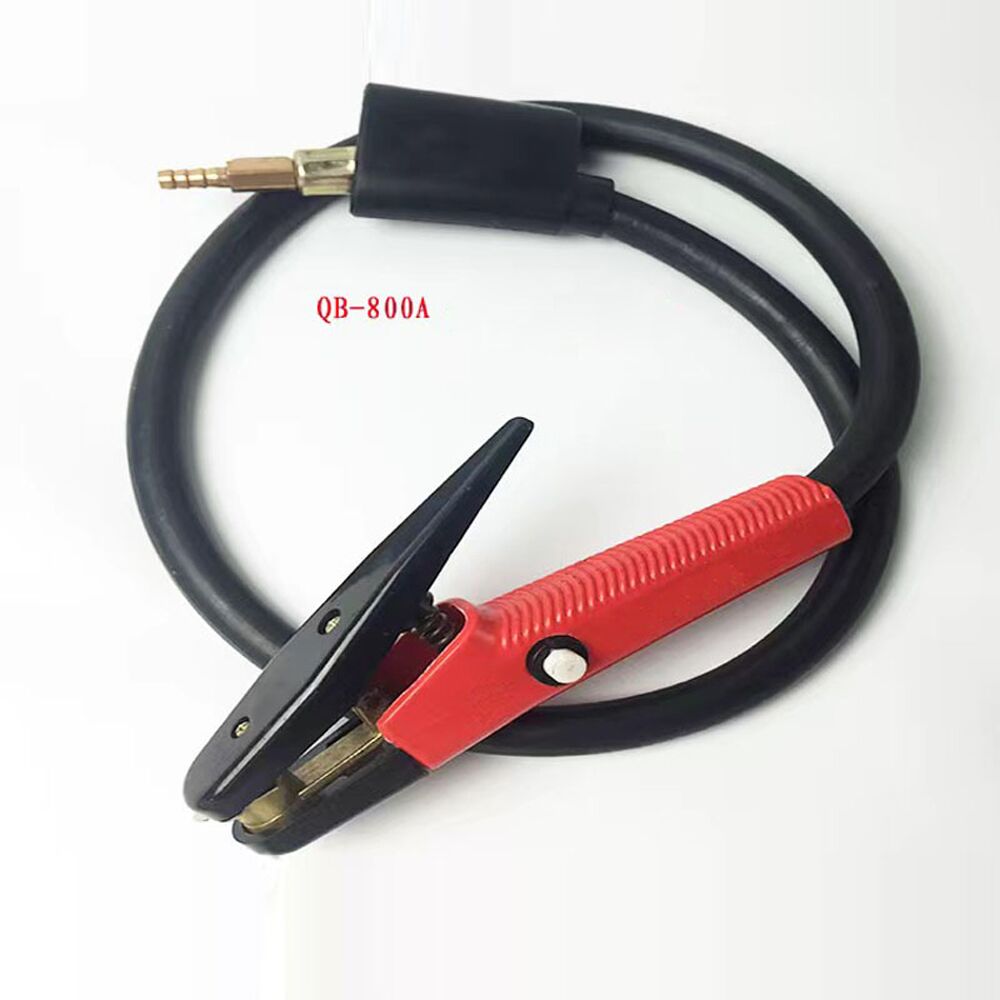

QB-800A hand gun for gouging welding torch is one of welding torches. It works with 800A current and 220V voltage. The total length with cable is 1.5m.
| Item No.: | QB-800A |
| Current: | 800A |
| Supply Voltage: | AC220V/50HZ |
| Total Length: | 1.5M |
| Warranty Time: | 1 year |
| Delivery Time: | According to the purchasing quantity |
| MOQ: | 100PCS |
| Payment Terms: | T/T |
| Supply Ability: | 5000PCS/month |
Custom Containers FAQs
Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!
These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.
Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 （acetylene）and G03 （propane）tips.
| Type | No. | Gas cutting aperture(mm) | Cutting Thickness(mm) | Cutting speed (mm/min) | Oxygen pressure(Mpa) | Acetylene pressure(Mpa) |
| Acetylene GO₂ | #00 | 0.8 | 5-10 | 600-450 | 0.2-0.3 | >0.03 |
| #0 | 1.0 | 10-20 | 480-380 | 0.2-0.3 | 0.03 | |
| #1 | 1.2 | 20-30 | 400-320 | 0.25-0.35 | 0.03 | |
| #2 | 1.4 | 30-50 | 350-280 | 0.25-0.35 | 0.03 | |
| #3 | 1.6 | 50-70 | 300-240 | 0.3-0.4 | 0.04 | |
| #4 | 1.8 | 70-90 | 260-200 | 0.3-0.4 | 0.04 | |
| #5 | 2 | 90-120 | 210-170 | 0.4-0.6 | 0.04 | |
| #6 | 2.4 | 120-160 | 180-140 | 0.5-0.8 | 0.05 | |
| #7 | 2.8 | 160-200 | 150-110 | 0.6-0.9 | 0.05 | |
| #8 | 3.2 | 200-280 | 90-60 | 0.6-1.0 | 0.05 | |
| #9 | 3.6 | 270-350 | 90-60 | 0.7-1.1 | 0.05 | |
| #10 | 4 | 350-400 | 70-50 | 0.7-1.2 | 0.06 |
Type | No. | Gas cutting | Cutting | Cutting speed | Oxygen | Acetylene |
Propane | #0 | 0.7 | 5-10 | 800-450 | 0.2-0.3 | >0.03 |
#1 | 0.9 | 10-20 | 480-300 | 0.2-0.3 | 0.03 | |
#2 | 1.2 | 20-35 | 400-320 | 0.3-0.4 | 0.03 | |
#3 | 1.5 | 35-60 | 350-280 | 0.3-0.4 | 0.03 | |
#4 | 1.8 | 60-90 | 300-240 | 0.4-0.6 | 0.04 | |
| #5 | 2.1 | 90-130 | 260-200 | 0.4-0.6 | 0.04 |
#6 | 2.5 | 130-180 | 220-180 | 0.4-0.6 | 0.04 | |
#7 | 2.7 | 180-250 | 200-160 | 0.5-0.7 | 0.05 | |
#8 | 3.1 | 250-330 | 180-140 | 0.5-0.7 | 0.05 | |
#9 | 3.5 | 330-380 | 130-90 | 0.6-0.8 | 2.05 | |
#10 | 4.0 | 380-450 | 90-50 | 0.6-0.8 | 0.05 |
Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.
The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.
MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.
What is the warranty time for welding and cutting machines.
