Description

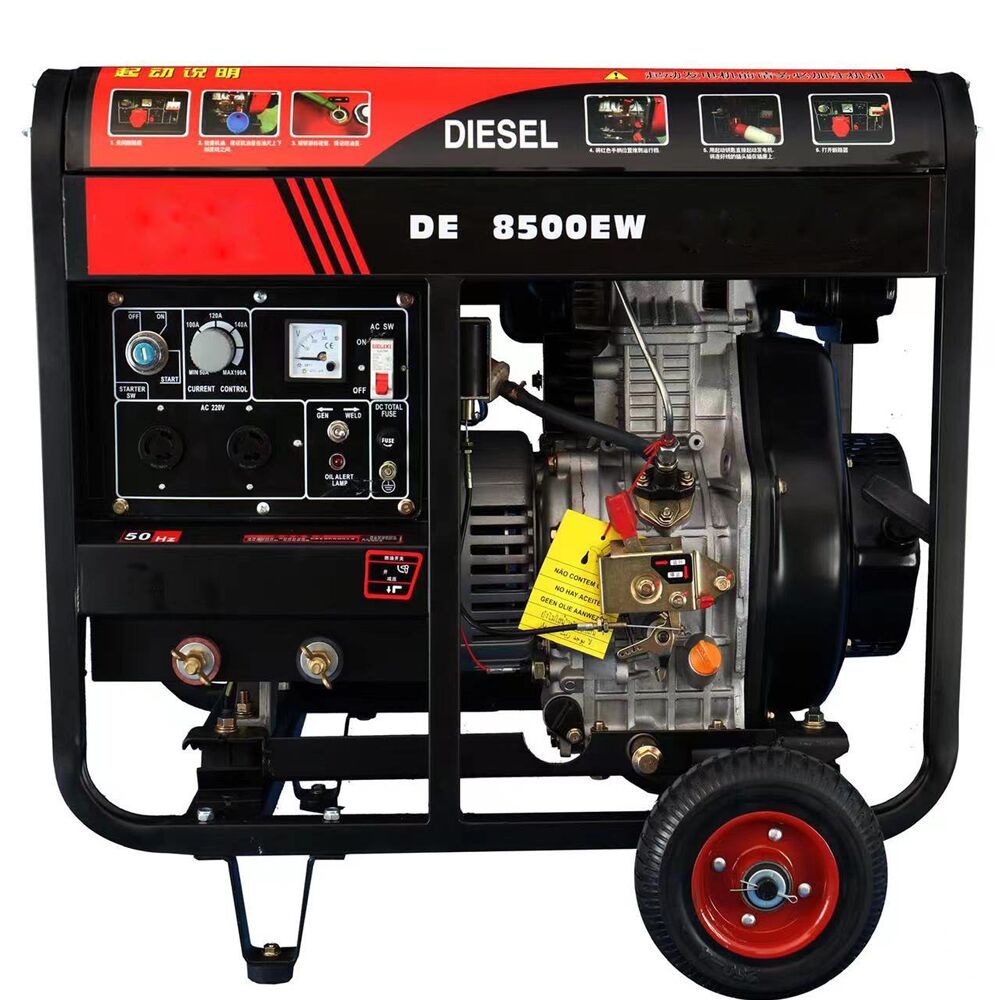

8500EW air-cooled diesel welding generator is widely used when electrical power is scarce. Our welders provide a poratble mobile solution in supplying power for field operations during project construction. Some other known this diesel welding generator includes pipeline construction and metal welding when electrical power is not avaiable. The proper fuel for the diesel generator set is light diesel fuel. Do not use gasoline, kerosene and other fuels other than light diesel fuel. Keep all flammable fuels away from the generator as the generator may spark and ignite these gases. In order to prevent fires from occurring, and to provide enough ventilation for people and the machine, keep the diesel generator at least 1.5meters away from building or other equipment.
| Rated frequency[Hz] | 50 |
| Rated voltage[V] | 230 |
| output power（KVA) | 2.0 |
| No-load electric welding voltage(V) | 50-60 |
| Rated rotation speed[rpm] | 3000 |
| Rated welding DC current(A) | 200 |
| Rated welding work voltage(V) | 25-30 |
| Welding load continuous ratio | 60% |
| Current regulation range(A) | |
| Phase number | Single phase |
| Structure type | Open-frame |
| Continuous running time(at rated load) | 12 hours |
| Starting system | CL:recoil start E:electric start |
| Engine model | Single cylinder,4-stroke,air-cooled,direct injection, diesel engine, Bore x stroke: 92x75mm,498ml Displacement, 3000rpm Engine speed, 19:1 Compression ratio, Rated output power 9(12.15)/3000 [KW (HP)], Max output power 10(13.5)/3600 [KW (HP)], |
| Engine type | KD192FE |
| Rated power[KW(Hp)/rpm] | 6.0/3000 |
| Fuel | 0# or 10# light diesel oil |
| Lube | CDgrade or SAE 10W-30,15W-40 |
| Fuel tank Capacity (L[gal] | 12.5l |
| Overall dimension(LxWxH)[mm] | 710X515X640 |
