DC Mma Inverter Welder Arc 200 Welding Machine

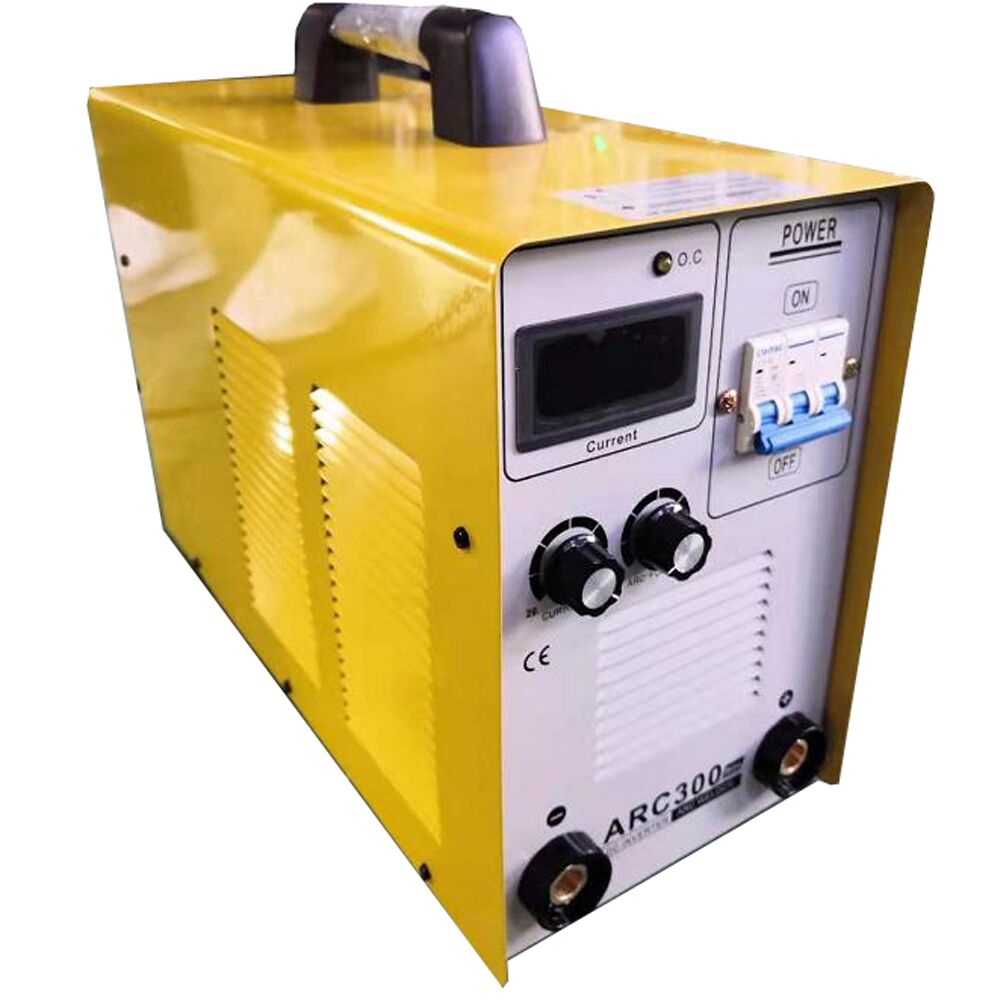

DC Mma Inverter Welder Arc 300 Welding Machine

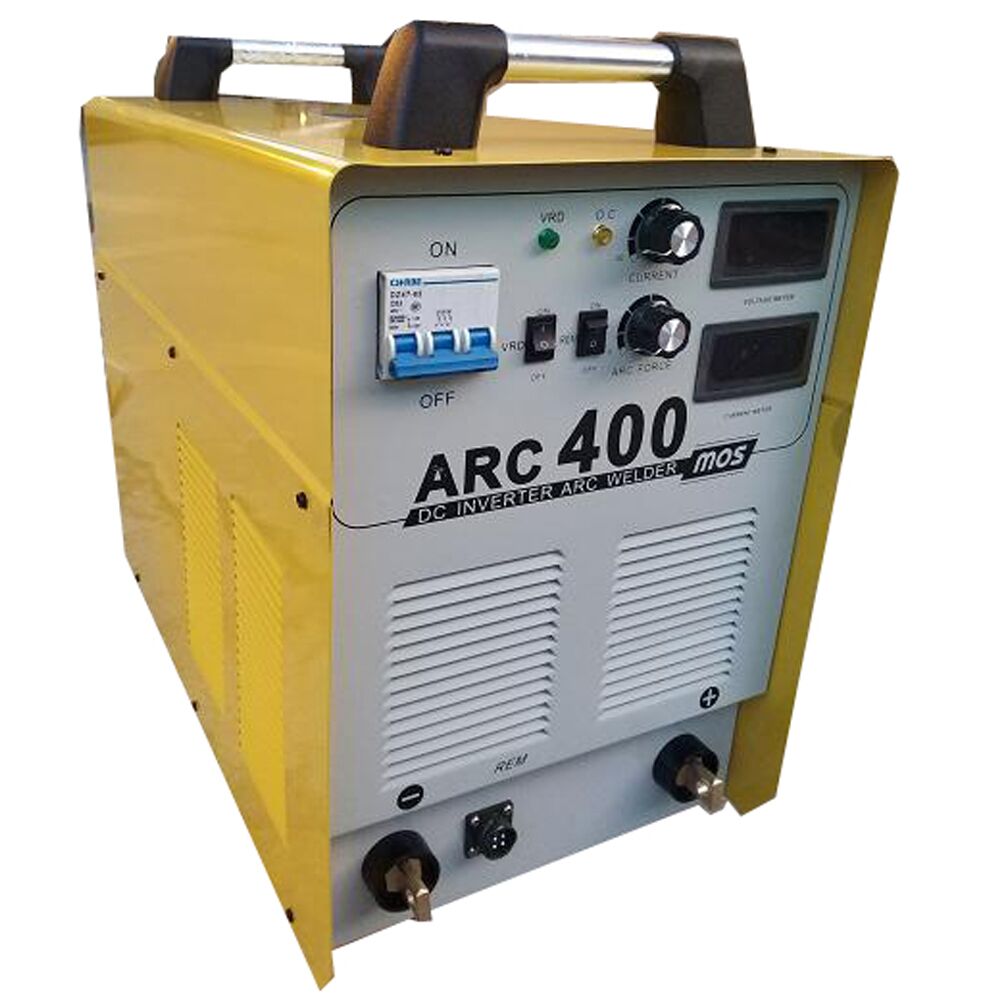

DC Mma Inverter Welder Arc 400 Welding Machine

DC Mma Inverter Welder Arc 200 Welding Machine



  • Power Frequency: 50HZ
  • Supply Voltage: AC230V
  • Rated Range: 160A
  • Welding Range: 1.6-3.2
  • Internal Configuration: 12pcs * D92-02, 3pcs *21:4
  • No-load Voltage: 62
  • Capacitance: 4pcs * 470uf/400V（35*50）
Categories , , , Tag
Get a Quote Now

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

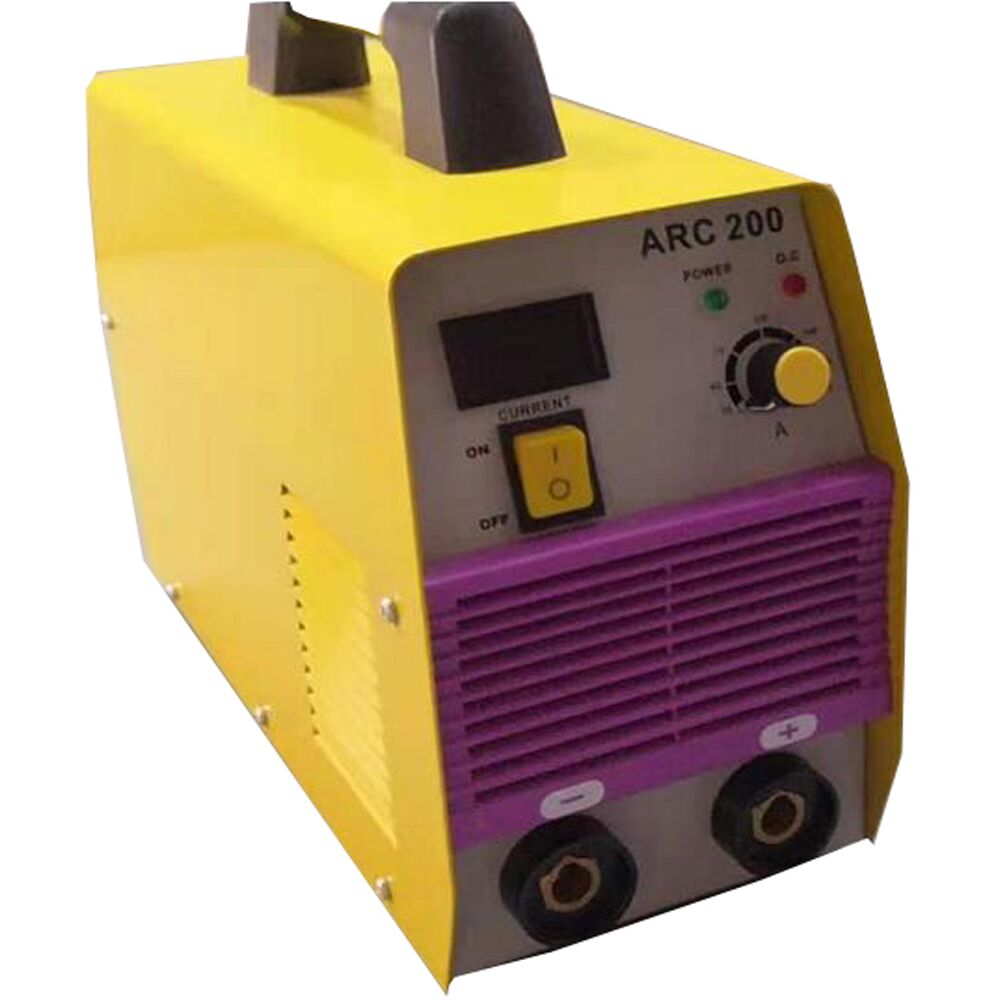

    Arc 200 Welding Machine is a portable small arc inverter welder. It is widely used to weld all kinds of welding rod, such like acid and basic rod. Arc 200 welding machine is with automatic compensation for voltage fluctuations capacity, anti-network fluctuation strong, stable welding current. It is low no-load loss, small size, light weight, little spark and high efficiency.

    Item No.: ARC-200
    Power Frequency  50Hz
    Functions: arc welding
    Supply Voltage: AC230V
    Rated Range: 160A
    Welding rod size(MM): 1.6-3.2
    Capacitance: 4pcs * 470uf/400V（35*50）
    No-load Voltage: 62
    Internal Configuration: 12pcs * D92-02, 3pcs *21:4
    Standard Accessories: 1pcs welding gun with 2m cable,  1pcs earth clamp with 1.5m cable

    DC Mma Inverter Welder Arc 200 Welding MachineDC Mma Inverter Welder Arc 300 Welding MachineDC Mma Inverter Welder Arc 400 Welding Machine

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 （acetylene）and G03 （propane）tips.

    TypeNo.Gas cutting
    aperture(mm)    		Cutting
    Thickness(mm)    		Cutting speed
    (mm/min)    		Oxygen
    pressure(Mpa)    		Acetylene
    pressure(Mpa)
    Acetylene
    GO₂    		#000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

    MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

    What is the warranty time for welding and cutting machines.
